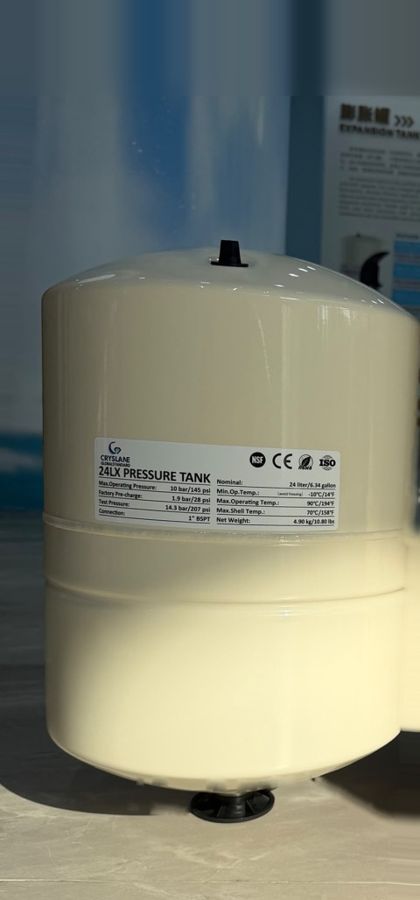

24LX
24 L · in-line- Size (H×Ø)
- 440 × 290 mm
- Pre-charge
- 1.9 bar
- Connection
- 1" BSPT
- Weight
- 4.90 kg
Apartments, small villas, RO and filtration systems
Request a quote →
DISTRIBUTED IN THE UAE BY ROYAL RAJAB TRADING CO.
Cryslane water pumps & pressure tanks
Cryslane multistage booster pumps and pressure tanks: complete pressure-boosting solutions from one supplier, with stock in Abu Dhabi and delivery across the UAE.
NSFCERoHSISOFDAN₂ PRE-CHARGED
Why Cryslane pressure tanks
Extra safe. Extra strong. Extra clean.
Extra safe
Made of FDA-compliant materials, suitable for drinking water.
Extra strong
Thick carbon-steel shell, rated to 10 bar and factory tested at 14.3 bar.
Extra clean
Antibacterial butyl diaphragm keeps water away from the steel shell.
Cryslane pressure tanks
Five sizes, one standard
From compact in-line tanks for apartments to 200-litre floor-standing tanks for commercial booster sets.

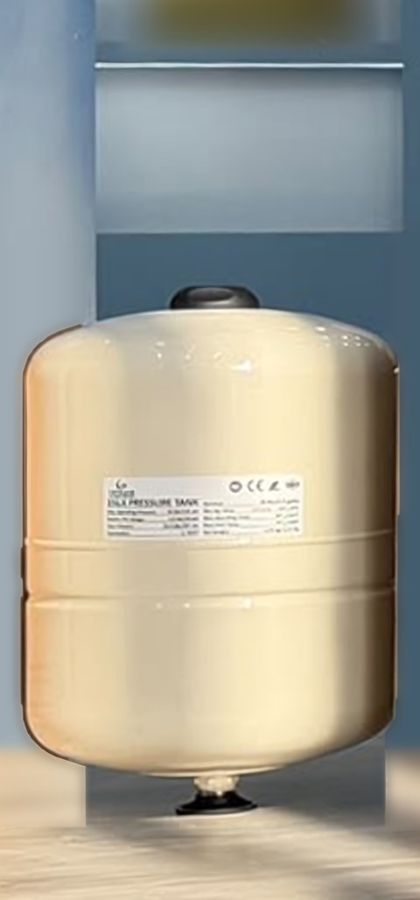

35LX
35 L · in-line- Size (H×Ø)
- 480 × 318 mm
- Pre-charge
- 1.9 bar
- Connection
- 1" BSPT
- Weight
- 5.70 kg

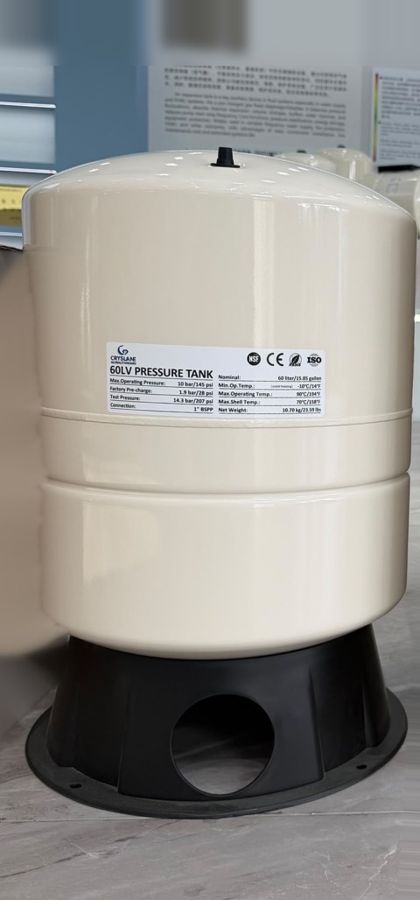

60LV
60 L · vertical with base- Size (H×Ø)
- 623 × 387 mm
- Pre-charge
- 1.9 bar
- Connection
- 1" BSPP
- Weight
- 10.70 kg

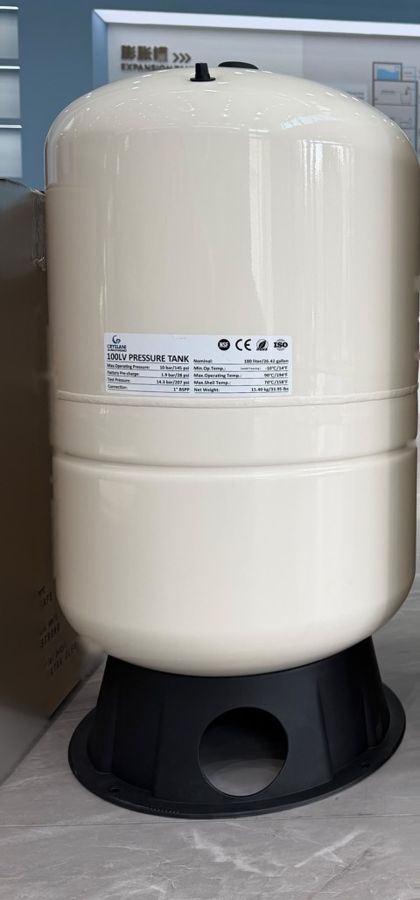

100LV
100 L · vertical with base- Size (H×Ø)
- 810 × 428 mm
- Pre-charge
- 1.9 bar
- Connection
- 1" BSPP
- Weight
- 15.40 kg
Large villas, low-rise buildings, commercial booster sets, farms

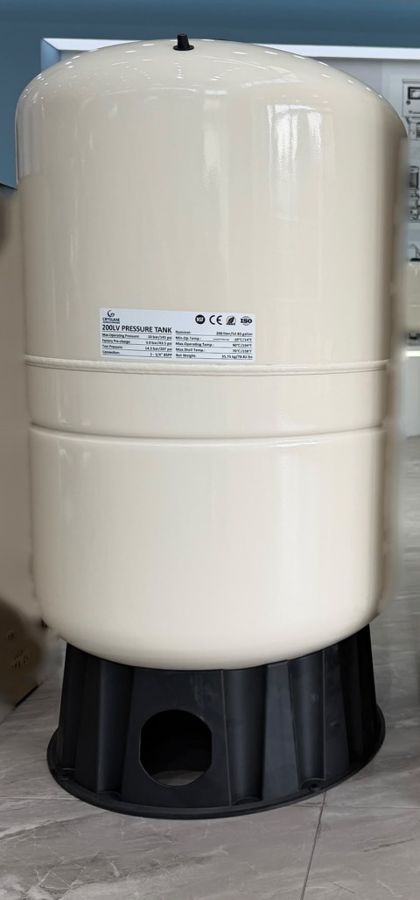

Request a quote →200LV
200 L · vertical with base- Size (H×Ø)
- 920 × 552 mm
- Pre-charge
- 3.0 bar
- Connection
- 1¼" BSPP
- Weight
- 35.75 kg
Max. working pressure 10 bar / 145 psi
Test pressure 14.3 bar / 207 psi
Max. water temp. 90 °C
Connection 304 stainless steel
| Model | 24LX | 35LX | 60LV | 100LV | 200LV |
|---|---|---|---|---|---|
| Nominal volume | 24 L | 35 L | 60 L | 100 L | 200 L |
| US gallons | 6.34 | 9.25 | 15.85 | 26.42 | 52.83 |
| Design | In-line | In-line | With base | With base | With base |
| Height (mm) | 440 | 480 | 623 | 810 | 920 |
| Diameter (mm) | 290 | 318 | 387 | 428 | 552 |
| Max. working pressure | 10 bar | 10 bar | 10 bar | 10 bar | 10 bar |
| Factory pre-charge | 1.9 bar | 1.9 bar | 1.9 bar | 1.9 bar | 3.0 bar |
| Test pressure | 14.3 bar | 14.3 bar | 14.3 bar | 14.3 bar | 14.3 bar |
| Connection | 1" BSPT | 1" BSPT | 1" BSPP | 1" BSPP | 1¼" BSPP |
| Net weight | 4.90 kg | 5.70 kg | 10.70 kg | 15.40 kg | 35.75 kg |
How a pressure tank works
Steadier pressure, fewer pump starts
1
The pump fills the diaphragm with water, compressing the nitrogen cushion above it.
2
When a tap opens, the stored pressure delivers water before the pump needs to start.
3
Fewer pump starts means steadier pressure, less wear and lower power use.
Construction & quality

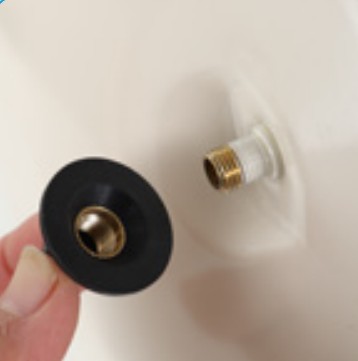

Pure copper air valve with leak-proof cap

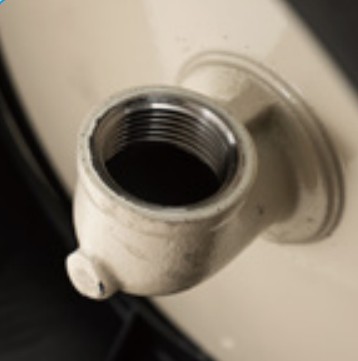

304 stainless steel water connection

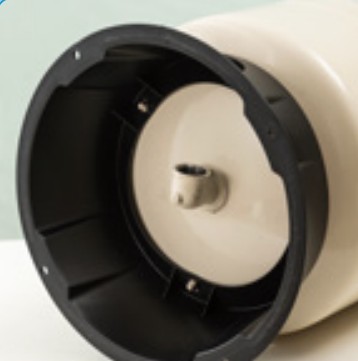

Reinforced base for stable floor mounting (LV models)

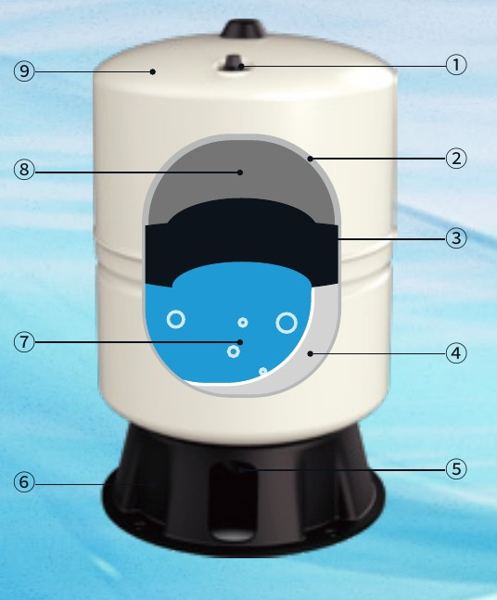

Built to last, leak-proof by design
- 1O-ring protected, leak-proof air valve cap
- 2Thickened carbon-steel shell (1.1–1.5 mm), rated to 10 bar
- 3Fixed butyl rubber diaphragm – leak-proof and maintenance-free
- 4Food-grade, corrosion-resistant polypropylene liner
- 5Reinforced 304 stainless steel water connection
- 6Reinforced engineering-plastic base and feet
- 7Water chamber, isolated from the steel tank wall
- 8Air chamber, factory pre-charged with nitrogen
- 9Durable, high-adhesion powder-coated finish
10 barRATED WORKING PRESSURE
14.3 barFACTORY TEST PRESSURE
1.1–1.5 mmTHICKENED STEEL WALL
Cryslane water pumps
HORIZONTAL MULTISTAGE
VERTICAL MULTISTAGE
Horizontal & vertical multistage pumps
Cryslane multistage pumps for domestic, commercial and industrial water boosting, available in 50 Hz and 60 Hz.
CB / CBI series
- Compact, closed-coupled design that saves space
- Cast iron with 304 and 316 stainless steel construction
- Maintenance-free, for a long and trouble-free life
- Non-self-priming
CB 2CB 4CB 8CB 12
Request a quote
SB / SBI series
- Vertical multistage pumps with IE3 motors
- For buildings, villas and commercial booster sets
- Suitable for irrigation and water transfer
SB 5SB 10SB 15
Request a quote
Pair any Cryslane pump with a Cryslane pressure tank for a complete booster set. Tell us your flow and pressure and we'll recommend the right combination.
